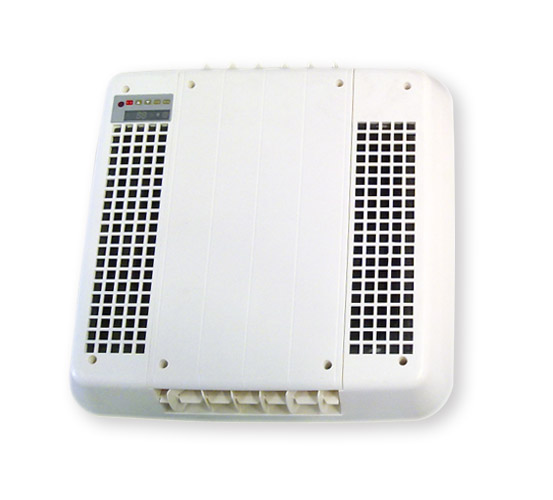

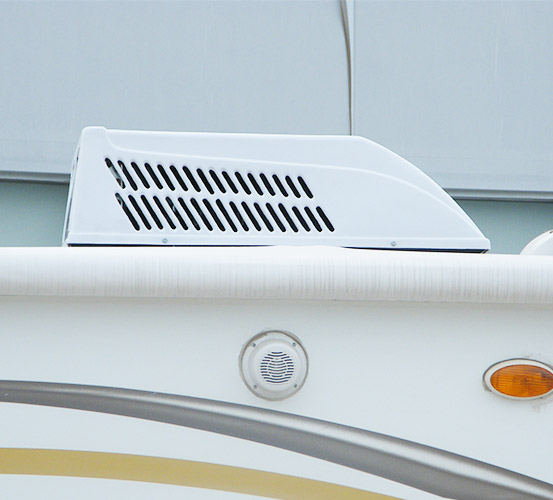

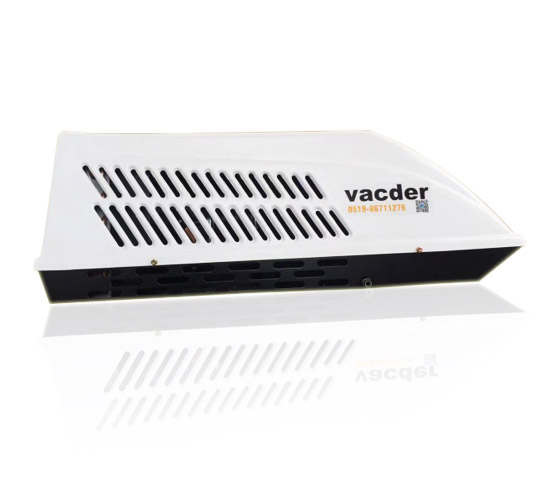

V series special overhead air conditioner
Strong cooling and heating capacity, larger cooling capacity up to 4000W, suitable for large space vehicles with wide interior. It can be used in high temperature environment, and can work normally at 55 ℃, which is second to none in the whole industry. Durable quality, suitable for all kinds of bad road conditions and working conditions.
Model | V4000;V3500 |
Appearance color | White |
Power(AC) | AC230V 50Hz |

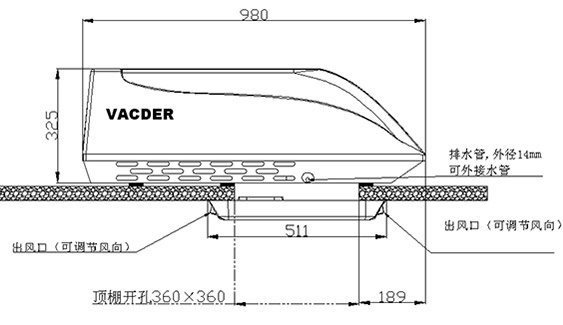

Opening in the vehicle | 360*360mm |
control mode | Touch button, remote control |
For vehicles up to 8m long | ＜9m |

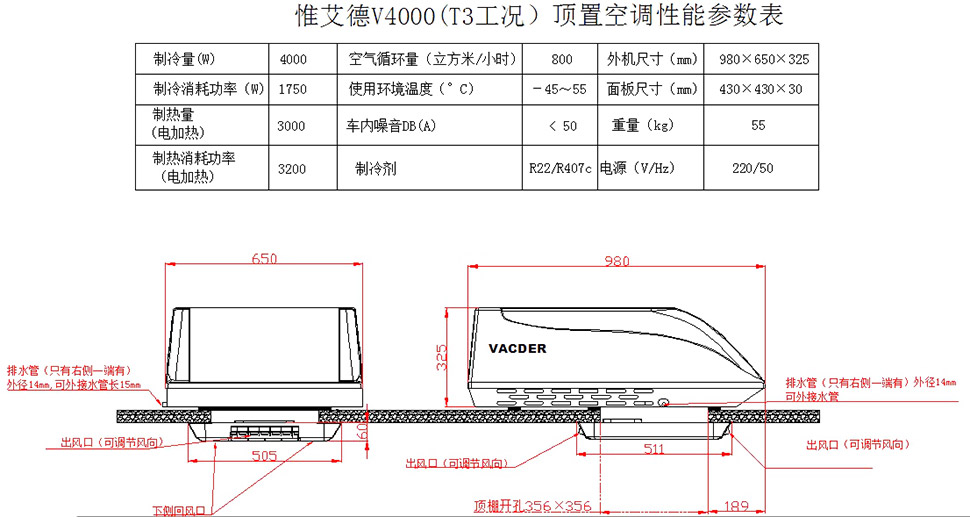

Model | V4000(D) | |||
Title | Unit | Standard | ||
Cooling | Rated Cooling Capacity | W | 4000 | |
Rated Cooling Power | W | 1750 | ||
Rated current | A | 7.9 | ||
Thermal | Rated Thermal Capacity | W | 3000 | |
Rated Thermal Power | W | 3200 | ||
Rated current | A | 14.5 | ||
Power | Single phase alternating current, 220V/240V 50Hz | |||
Regular Temperature | ℃ | -45~45 | ||
Temperature range | ℃ | 16~30 | ||
Refrigerants | R22/r407c | |||
Refrigerants Capacity | G | 800 | ||
Net weight | Kg | 50 | ||

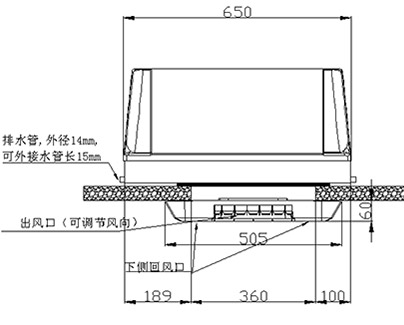

Dimension (L*W*H) | Mm | 980(L)*650(W)*330(H) | ||
